Keyed Cylinder Lock - for Access Covers

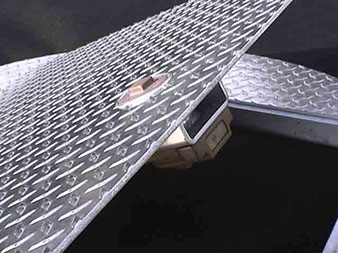

The keyed cylinder lock is a recessed dead bolt-style locking system. The lock is mounted to the underside of the access cover and has a brass plug to prevent debris from accumulating in the lock hole.

Applications

The keyed cylinder lock option is commonly specified when a dead bolt-style locking system is desired. This option should be considered when optimum security is of utmost concern. The lock can be keyed to other locks, which will reduce the need for multiple keys at multiple installations. The installation is flush and should be considered at pedestrian traffic applications.

Specifications

• The keyed cylinder lock is a #112 rim-lock, as manufactured by Yale Lock Co.
• The lock housing is welded to the underside of the access cover to create a flush walking surface.
• The lock is has a 2-inch (51mm) diameter brass debris plug.

Download Keyed Cylinder Lock Drawing (PDF) ››

Download Keyed Cylinder Lock Drawing (DWG) ››

Download Keyed Cylinder Lock Drawing (DWF) ››
