Protective Grating Options for Access Covers

Halliday Products offers an optional protective grating panel equipped with all T-316 stainless steel hardware. This lockable grating panel can be factory installed on most models in our extensive line of quality access covers. Each grating panel is powder coat finished in Safety Orange color, and is equipped with a T-316 stainless steel positive latch with release handle that secures the grating panel in the open position.

The 300 lbs (1464 kg. ) load rated grating support ledges feature built-in nut rail. Each unit is supplied with four stainless steel spring nuts used to mount pump brackets and cable holders. (Optional on H20 load rated units.)

Applications

The optional protective grating panel should be specified for applications in areas that require additional protection should the access cover be left in the open position. This option should also be considered when a single person inspection to wet wells is desirable. The grating panel has provisions for an owner-supplied padlock that would provide secondary protection against unauthorized personnel opening the access cover. This option is not available for all access covers models. Please consult the factory.

Features

Aluminum “I” bar construction
All T-316 stainless steel hardware
Tamper proof stainless steel hinge bolts
Lockable with owner-supplied padlock
Hinged with positive latch to maintain upright position
Load rated consistent with access cover
View area for observation and limited maintenance
Safety Orange powder-coated finish
Nut rail and stainless steel spring nuts with 300 psf (1464 kg. per sq. meter) loaded doors only
Lifetime Warranty

Protective Grating Option for:
For 300 lbs. psf (1464 kg. per sq. meter) Load Rated Doors

The optional protective grating panel as manufactured by Halliday Products, of Orlando, Florida shall be 1 inch (25 kg.) aluminum “I” bar grating with Safety Orange powder-coated finish. Grating shall be hinged with tamper proof stainless steel bolts, and shall be supplied with a positive latch to maintain unit in an upright position. Grating shall have a 6-in. (152mm) viewing area on each lateral unhinged side for visual observation and limited maintenance. Grating support ledges on 300 lbs. psf (1464 kg. per sq. meter) loaded access covers shall incorporate nut rail with a minimum of four (4) stainless steel spring nuts. A padlock hasp for owner-supplied padlock shall be provided.

Secondary protective grating panel shall be 1 inch (25mm) thick aluminum “I” bar grating.
Grating panel color and finish shall be Safety Orange powder- coating.
Grating panel shall be hinged with tamper proof stainless steel bolts, and shall be supplied with positive latch to maintain unit in an upright position.
A 6-in. (152mm) viewing area shall be provided on each lateral unhinged side of grating panel, for visual observation and limited maintenance procedures.
The grating support ledges shall incorporate nut rail feature supplied with minimum of four stainless steel spring nuts for mounting pump brackets and/or cable holders.
A padlock hasp for owner-supplied padlock shall be provided.

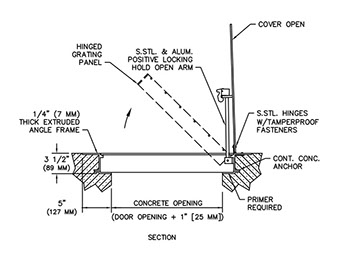

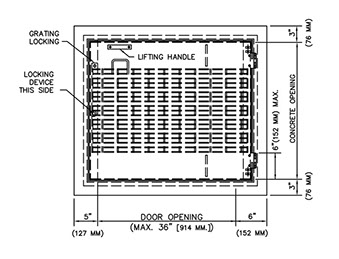

Download OPD Grating Drawing (PDF) ››

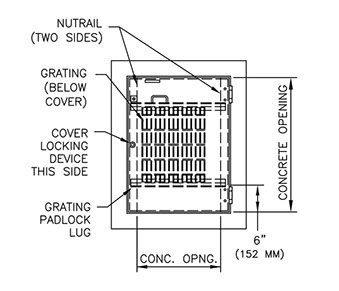

Download OPD Grating Drawing (DWG) ››

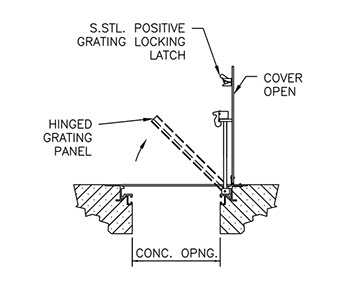

Download OPD Grating Drawing (DWF) ››

Protective Grating Option for:
H20 Load Rated Doors

The optional protective grating panel as manufactured by Halliday Products, of Orlando, Florida shall be 3 inch (76mm) aluminum “I” bar grating with Safety Orange powder-coated finish. Grating shall be hinged with tamper proof stainless steel bolts, and shall be supplied with a positive latch to maintain unit in an upright position. Grating shall have a 6-in. (152mm) viewing area on each lateral unhinged side for visual observation and limited maintenance. A padlock hasp for owner-supplied padlock shall be provided.

Secondary protective grating panel shall be 3 inch (77mm) thick aluminum “I” bar grating.
Grating panel color and finish shall be Safety Orange powder- coating.
Grating panel shall be hinged with tamper proof stainless steel bolts, and shall be supplied with positive latch to maintain unit in an upright position.
A 6-in. (152mm) viewing area shall be provided on each lateral unhinged side of grating panel, for visual observation and limited maintenance procedures.
A padlock hasp for owner-supplied padlock shall be provided.
