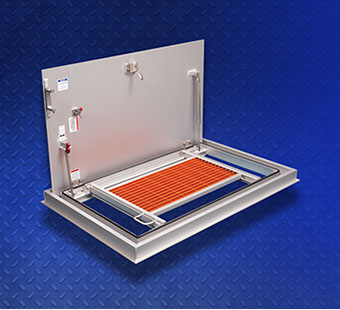

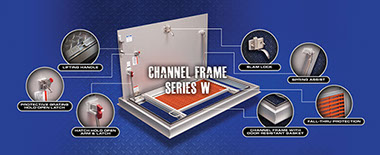

Channel Frame - SERIES W

Series W1R & W2R

The economical W-R series is a channel framed access cover with 300 lb. psf (1464 kg psm) load rating. Single and double door units are ideal for casting into concrete top slabs directly above equipment in vaults that do not have provisions for drainage. Please see the drawing page for standard features. The channel frame acts as a gutter to capture water run off and divert it away from the interior of the vault. Although the unit is not 100% water tight, it should be used when water intrusion is a determining factor.



Get a Quote for W1RDownload W1R Drawing (PDF) ››Download W1R Drawing (DWG) ››

Get a Quote for W2RDownload W2R Drawing (PDF) ››Download W2R Drawing (DWG) ››

Series W1S

The W1S series is a single door, channel framed access cover with 300 lb. psf (1464 kg psm) load rating. Units are supplied with spring assists and with a continuous neoprene gasket that significantly reduces odor omissions. Please see the drawing page for standard features. The W1S series is ideal for casting into pump station top slabs directly above submersible pumps in locations where odor suppression is desirable. The channel frame acts as a gutter to capture water run off and divert it away from the interior of the vault. Although the unit is not 100% water tight, it should be used when water intrusion or odor suppression is a determining factor.



Get a Quote for W1SDownload W1S Drawing (PDF) ››Download W1S Drawing (DWG) ››

Series W1C & W2C

The W-C series is a channel framed access cover with 300 lb. psf (1464 kg psm) load rating. Single and double door units are supplied with spring assists and should be used in applications where it is important that the cover not protrude into the channel frame when in the open position. They are ideal for casting into top slabs directly above equipment in vaults that do not have provisions for drainage. Please see the drawing page for standard features. The channel frame acts as a gutter to capture water run off and divert it away from the interior of the vault. Although the unit is not 100% water tight, it should be used when water intrusion is a determining factor.



Get a Quote for W1CDownload W1C Drawing (PDF) ››Download W1C Drawing (DWG) ››

Get a Quote for W2CDownload W2C Drawing (PDF) ››Download W2C Drawing (DWG) ››

Series W2S

The W2S series is a double door, channel framed access cover with 300 lb. psf (1464 kg psm) load rating. Units are supplied with spring assists and are ideal for casting into top slabs directly above equipment in vaults that do not have provisions for drainage. Please see the drawing page for standard features. The channel frame acts as a gutter to capture water run off and divert it away from the interior of the vault. Although the unit is not 100% water tight, it should be used when water intrusion is a determining factor.



Get a Quote for W2SDownload W2S Drawing (PDF) ››Download W2S Drawing (DWG) ››

View and use some of our popular options for your Submittals Package:
