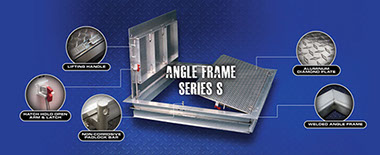

Angle Frame - SERIES S

Series S1R & S2R

The economical S-R Series is an angle framed access cover with 300 lb. psf (1464 kg psm) load rating. Single and double door units are ideal for casting into concrete top slabs directly above submersible pumps and debris baskets. Please see the drawing page for standard features. This series can also be used for underground vaults that have provisions for drainage of incidental water. This Series should not be used if water intrusion is a determining factor. (See channel framed series W-R, W-S or W-C) If required the S-R Series can also be modified to fit existing openings. For more information on this modification please consult the factory with your existing opening size(s).





Get a Quote for S1RDownload S1R Drawing (PDF) ››Download S1R Drawing (DWG) ››Get a Quote for S2RDownload S2R Drawing (PDF) ››Download S2R Drawing (DWG) ››

Series S1S & S2S

The S-S Series is an angle framed access cover with 300 lb. psf (1464 kg psm) load rating. Single and double door units are supplied with spring assists and are ideal for casting into concrete top slabs directly above submersible pumps and debris baskets. Please see the drawing page for standard features. This series can also be used for underground vaults that have provisions for drainage of incidental water. This Series should not be used if water intrusion is a determining factor. (See channel framed series W-R, W-S or W-C) If required the S-S Series can also be modified to fit existing openings. For more information on this modification on this modification please consult the factory with your existing opening size(s).





Get a Quote for S1SDownload S1S Drawing (PDF) ››Download S1S Drawing (DWG) ››Get a Quote for S2SDownload S2S Drawing (PDF) ››Download S2S Drawing (DWG) ››

View and use some of our popular options for your Submittals Package:

Recessed Lock Box (PDF) ››S1 Safety Post (PDF) ››S1 Nut Rail (PDF) ››Cover Bolt Down (PDF) ››Key Cylinder Lock (PDF) ››S2 Safety Cable (PDF) ››
