LOCKING BAR - FOR ACCESS COVERS

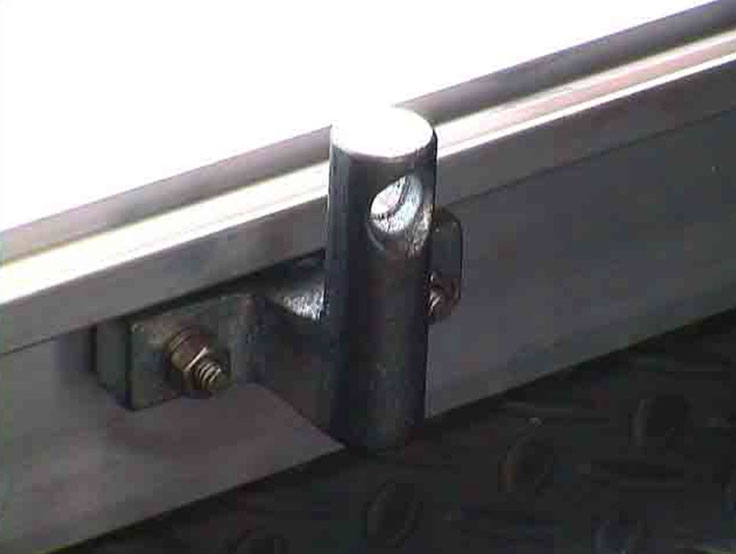

The non-corrosive locking bar is used in conjunction with an owner-supplied padlock. It is an inexpensive and reliable means to lock access covers in the closed position. The locking bar is attached to the access cover frame with T-316 stainless hardware. The locking bar is supplied as the standard locking system on single and double door Series SR, WR, TR, CR and RR access covers.
Applications
The locking bar option should be specified when an owner- supplied padlock is the chosen means of securing an access cover. Because the locking bar and padlock protrude above the closed cover, they should not be specified for pedestrian traffic applications.
Register for a FREE CATALOG
◀ Previous
Next ▶
Specifications
- The locking bar is a non-corrosive cast aluminum/zinc combination.
- The locking bar is attached to the access cover frame with T-316
stainless steel fasteners. - The padlock hole in the locking bar is 3/8” (10mm) in diameter.

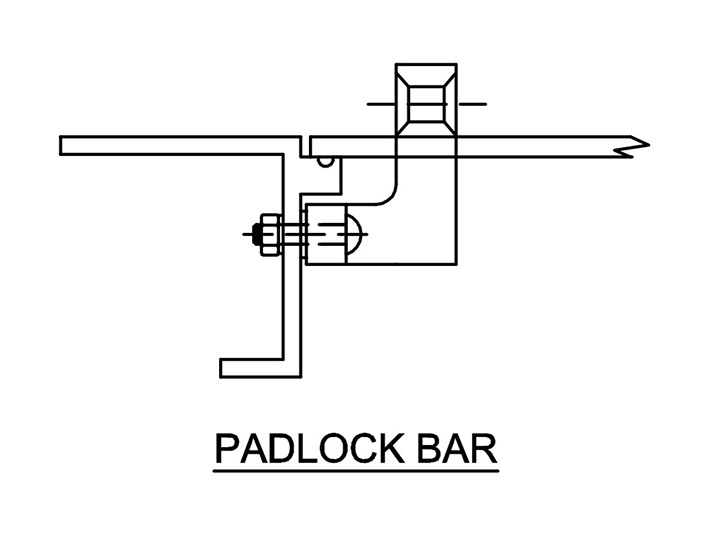

Download Locking Bar Drawing (PDF) ››
