Installation & Operation Instructions

Installation:

1. Place ladder flat on the ground with standoffs up.

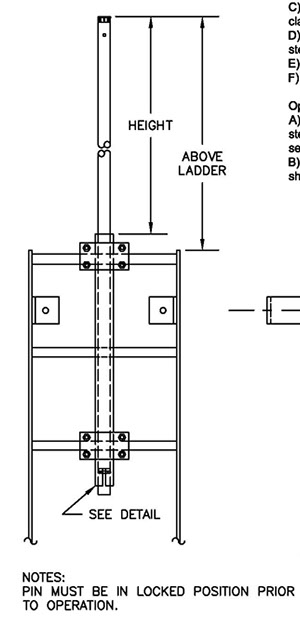

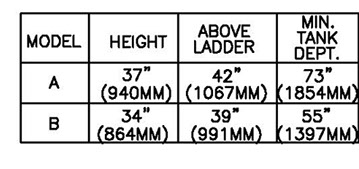

2. Place 2” (52MM) square aluminum tube in center of rungs with the “T” shaped slot below third rung as shown (Model A) or second rung (Model B).
3. Place stainless steel channel clamp over square aluminum tube so U bolt holes line up on either side of rungs as shown.
4. Insert stainless steel U bolts over rung and through holes in stainless steel channel clamp as shown.
5. Apply 10-15 foot pounds (1.3-2.1 kg./meter) of torque to all U bolt nuts.
6. Verify that square aluminum tube is secured to ladder rungs.



Operation:

1. To engage ladder extension, grasp aluminum post above the top stainless steel channel clamp, and pull straight up until lower stainless steel pin is seated.

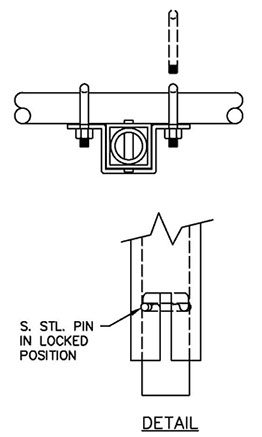

2. Rotate aluminum post 1/4 tum in either direction to secure pin in slot as shown in Detail.
