H20 LOAD RATED - SERIES H

Series H1R & H2R

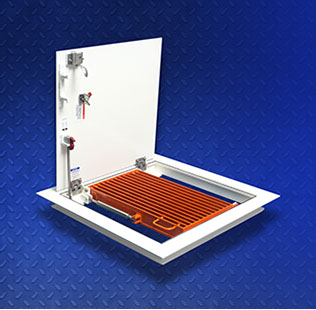

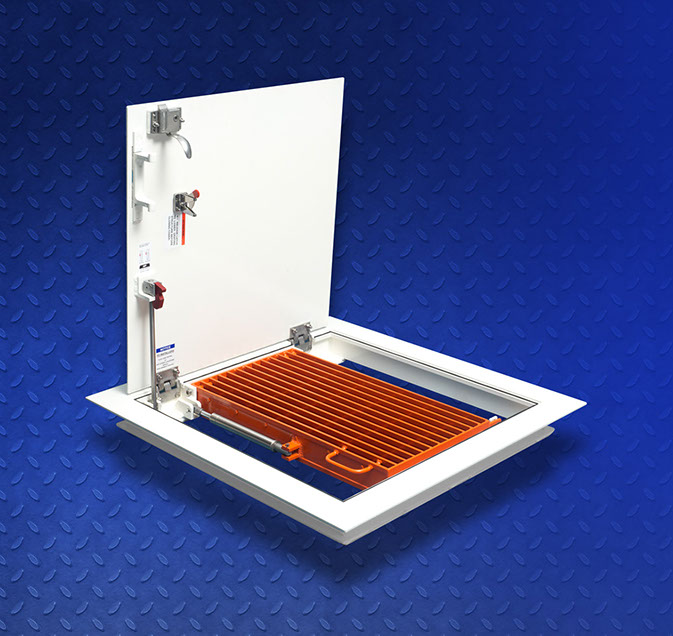

The H-R series is an angle framed access cover with H-20 load rating. H-R series cover should be used in off street locations where the unit will not be subjected to high density traffic. Acceptable locations include vaults located close to roadways but not in the street. Single and double door units are supplied with spring assists. Please see the drawing page for standard features. This unit should be used in underground vaults that have provisions for drainage of incidental water. This unit should not be used if water intrusion is a determining factor. (See channel framed series H-W or H-C).



Specifications ››

Protective Grating Options ››



​​Get a Quote for H1RDownload H1R Drawing (PDF) ››Download H1R Drawing (DWG) ››​Get a Quote for H2RDownload H2R Drawing (PDF) ››Download H2R Drawing (DWG) ››

​

Series H1W & H2W

The H-W series is a channel framed access cover with H-20 load rating. H-W series cover should be used in off street locations where the unit will not be subjected to high density traffic. Acceptable locations include vaults located close to roadways but not in the street. Single and double door units are supplied with spring assists. Please see the drawing page for standard features. The channel frame acts as a gutter to capture water run off and divert it away from the interior of the vault. Although the unit is not 100% water tight, it should be used when water intrusion is a determining factor.



Specifications ››

Protective Grating Options ››



​​Get a Quote for H1WDownload H1W Drawing (PDF) ››Download H1W Drawing (DWG) ››​Get a Quote for H2WDownload H2W Drawing (PDF) ››Download H2W Drawing (DWG) ››

​

Series H1C & H2C

The H-C series is a channel framed access cover with H-20 load rating. H-C series cover should be used in off street locations where the unit will not be subjected to high density traffic. Acceptable locations include vaults located close to roadways but not in the street. Single and double door units are supplied with spring assists and should be used in applications where it is important that the cover not protrude into the channel frame when the cover is in the open position. Please see the drawing page for standard features. The channel frame acts as a gutter to capture water run off and divert it away from the interior of the vault. Although the unit is not 100% water tight, it should be used when water intrusion is a determining factor.



Specifications ››

Protective Grating Options ››



​​Get a Quote for H1CDownload H1C Drawing (PDF) ››Download H1C Drawing (DWG) ››​Get a Quote for H2CDownload H2C Drawing (PDF) ››Download H2C Drawing (DWG) ››

​

Send Us Your Requirements

​Get a Quote for H1R (Non-Standard Units)  Get a Quote for H2R (Non-Standard Units)

​Get a Quote for H2R - 2 Door (Non-Standard Units)



​Get a Quote for H1W (Non-Standard Units)  Get a Quote for H2W (Non-Standard Units)

​Get a Quote for H2W - 2 Door (Non-Standard Units)



​Get a Quote for H1C (Non-Standard Units)  Get a Quote for H2C (Non-Standard Units)

​Get a Quote for H2C - 2 Door (Non-Standard Units)

​

View and use some of our popular options for your Submittals Package:

​H1R Safety Posts (PDF) ››Installation Detail (PDF) ››Bolt Down Cover (PDF) ››H1W Safety Posts (PDF) ››H2W Safety Posts - 2Dr. -  (PDF) ››H-R Recessed Lock Box (PDF) ››Key Cylinder Lock (PDF) ››H2R Safety Cables (PDF) ››H-W Recess Lock Box (PDF) ››H2W Safety Cables (PDF) ››H-C Recessed Lock Box (PDF) ››
