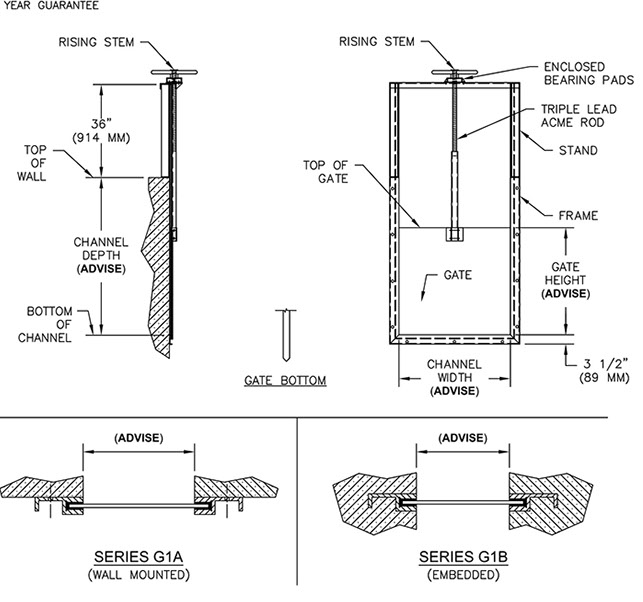

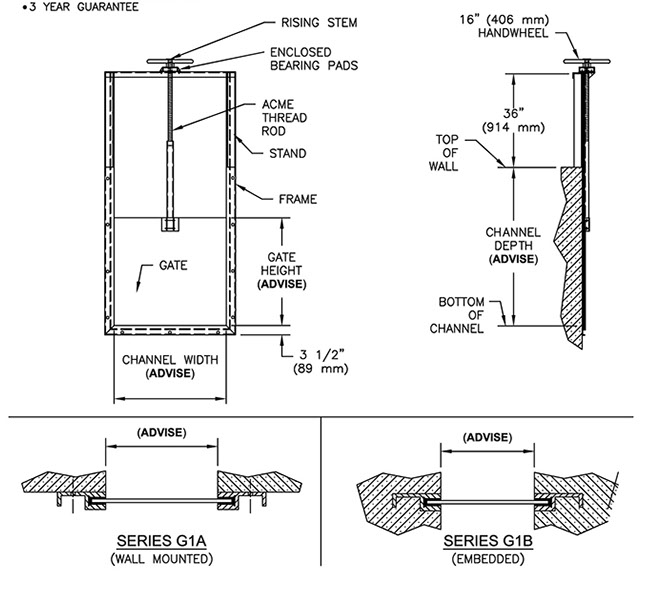

Series G1A & G1B

Slide Gates

One-Piece 6061-T6 Extruded Aluminum Frame
One-Piece Polymer Guide
1/4" (7 mm) Thick 6061-T6 Aluminum Gate
Reinforced As Required To Deflect No More Than 1/360th Of Span (5' Max Head Pressure)
Low Coefficient Of Friction
Deep Seating For Optimum Tracking
16" (406 mm) Diameter Aluminum Handwheel
1 1/8" (29 mm) S.Stl. Triple Lead Acme Rod
Brass Lifting Nut
Polymer Bearing Pads
Stainless Steel Hardware Throughout
Non-Ozone Depleting Bituminous Coating
Optional Clear Stem Cover
3 Year Guarantee

CUSTOMIZE YOUR QUOTE

Contact Email Enter Email

Required

Submitting your form now...

The server encountered an error. Please try again.

Form received! Thank you!

Customer Name Enter Name

Required

Company Enter Company

Required

Notes Enter Your Message

Quantity Enter Text

Channel Width Enter Text

Contact Phone Number Enter Text

Required

Shipping Zip Code Enter Text

Required

Series G1A

Series G1B

Channel Depth Enter Text

Gate Height Enter Text

Please ensure all Required fields are complete before submitting
