Specialty Covers - SERIES F

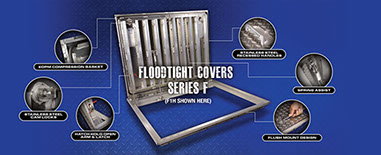

Series F1H

The F1H is a single door, flush mounted access cover reinforced to withstand a 25-foot column of stationary water, and H20 load rating. F1H series cover should be used in areas prone to flooding, in off street locations where the unit will not be subjected to high density traffic. Acceptable locations include vaults located close to roadways but not in the street. The F1H
series is also ideal for access to potable water storage tank or vaults in areas where odor control is a determining factor. Please see the drawing page for standard features.





Get a Quote for F1HDownload F1H Drawing (PDF) ››Download F1H Drawing (DWG) ››

Series F1C

The F1C series is a single door, flush mounted access cover reinforced to withstand a 25-foot column of stationary water, or approximately 1560 lb/ft2 (7641 kg/m2) live load. This unit is commonly used on underground vaults located in areas that are prone to flooding. The F1C series is also ideal for access to potable water storage tank or vaults in areas where odor control is a determining factor. Please see the drawing page for standard features.





Get a Quote for F1CDownload F1C Drawing (PDF) ››Download F1C Drawing (DWG) ››



Series F1R

The F1R series is a single door, curb style, angle framed access cover with 625 lb. psf (28 kg. per sq. meter) load rating. This unit is commonly used on underground vaults located in areas that are prone to flooding. The F1R series is also ideal for access to potable water storage tank or vaults in areas where odor control is a determining factor. Please see the drawing page for standard features. The unit is bolted to a structure directly above the existing opening.





Get a Quote for F1RDownload F1R Drawing (PDF) ››Download F1R Drawing (DWG) ››
