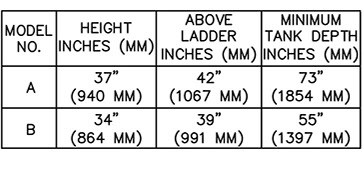

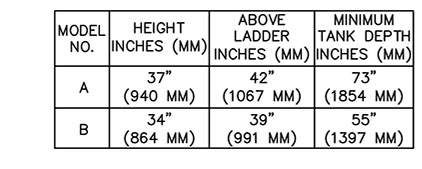

Series L1E

Ladder Extension

CUSTOMIZE YOUR QUOTE

Standard Features

  • Easy To Install On Aluminum Or Stainless Ladders
  • Secure Locking In The Extended Position
  • Light Weight Operation
  • All Aluminum And Stainless Steel Construction
  • Also Available In All Type 304 or Type 316 S.stl.
  • 3 Year Guarantee

Required

Submitting your form now...

The server encountered an error. Please try again.

Form received! Thank you!

Required

Required

Required

Required

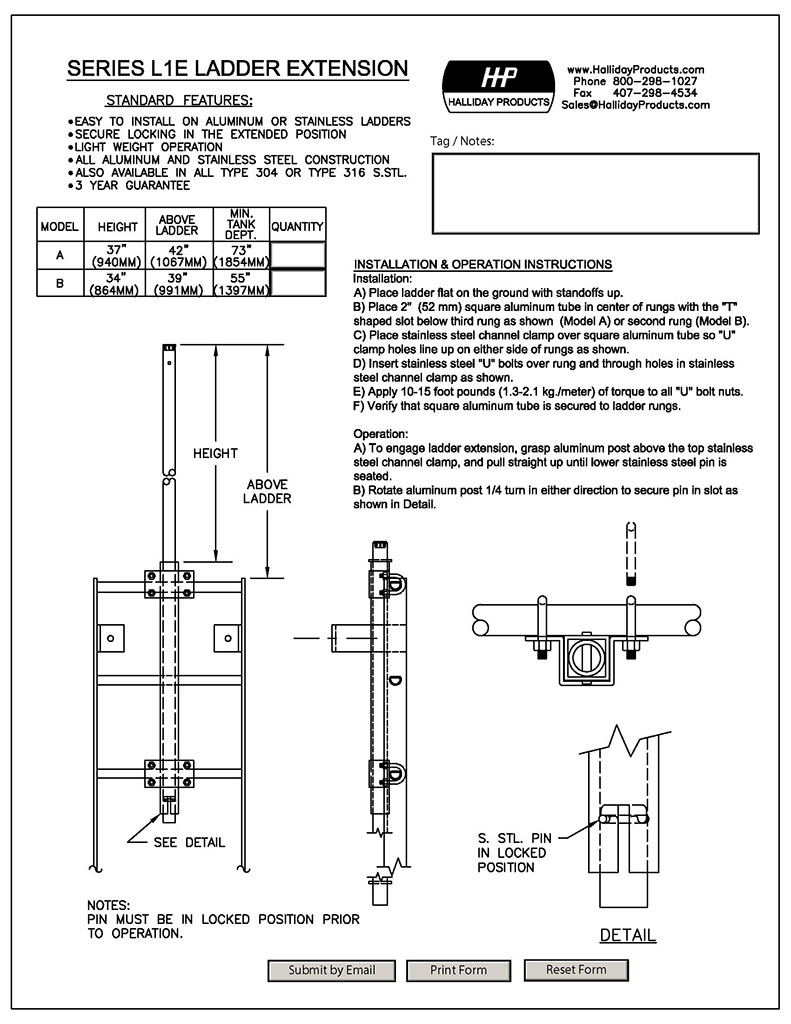

Installation & Operation Instructions

Installation:

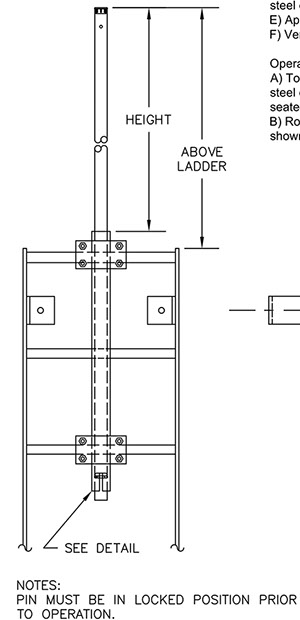

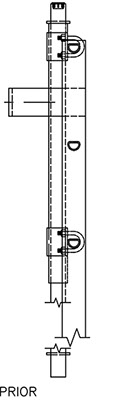

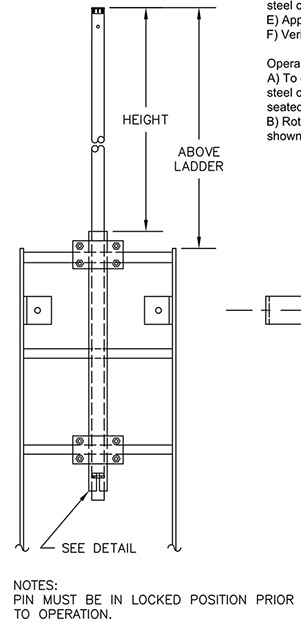

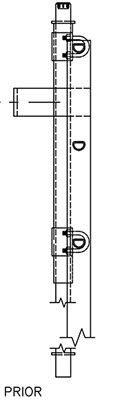

  1. Place ladder flat on the ground with standoffs up.
  2. Place 2” (52MM) square aluminum tube in center of rungs with the “T” shaped slot below third rung as shown (Model A) or second rung (Model B).
  3. Place stainless steel channel clamp over square aluminum tube so U bolt holes line up on either side of rungs as shown.
  4. Insert stainless steel “U” bolts over rung and through holes in stainless steel channel clamp as shown.
  5. Apply 10-15 foot pounds (1.3-2.1 kg./meter) of torque to all U bolt nuts.
  6. Verify that square aluminum tube is secured to ladder rungs.



Operation:

  1. To engage ladder extension, grasp aluminum post above the top stainless steel channel clamp, and pull straight up until lower stainless steel pin is seated.

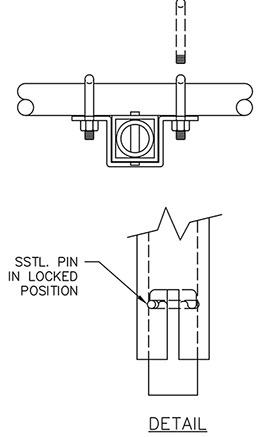

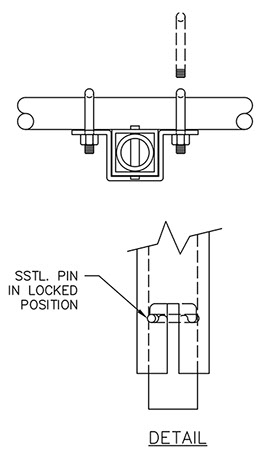

  2. Rotate aluminum post 1/4 tum in either direction to secure pin in slot as shown in Detail.
