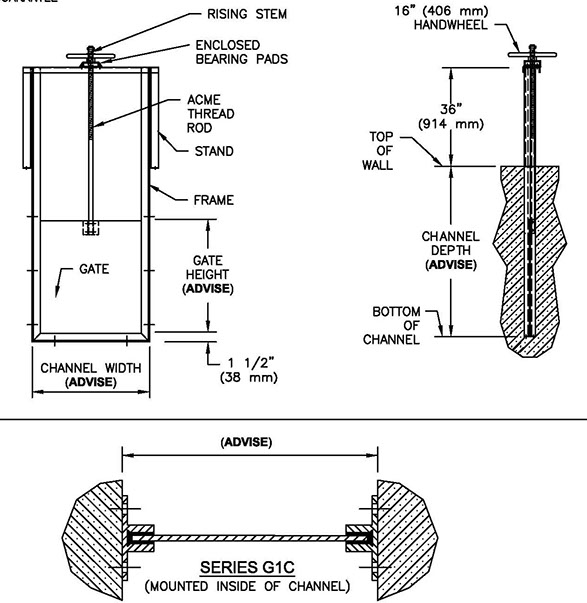

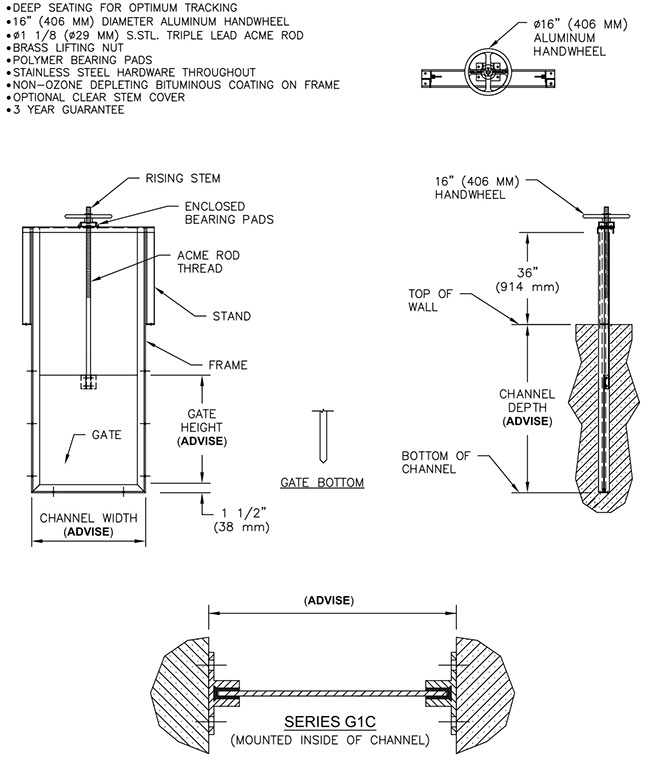

Series G1C

Slide Gates

Standard Features

  • One-Piece 6061-T6 Extruded Aluminum Frame
  • One-Piece Polymer Guide
  • 1/4" (7 mm) Thick 6061-T6 Aluminum Gate
  • Reinforced As Required To Deflect No More Than 1/360th Of Span (5' Max Head Pressure)
  • Low Coefficient Of Friction
  • Deep Seating For Optimum Tracking
  • 16" (406 mm) Diameter Aluminum Handwheel
  • 1 1/8" (29 mm) S.Stl. Triple Lead Acme Rod
  • Brass Lifting Nut
  • Polymer Bearing Pads
  • Stainless Steel Hardware Throughout
  • Non-Ozone Depleting Bituminous Coating
  • Optional Clear Stem Cover
  • 3 Year Guarantee
